Die-cutting is a versatile manufacturing process that uses specialized tools (dies) to cut, shape, or perforate materials. Originally used primarily in the printing and packaging industries, die-cutting is now widely applied across various sectors, from electronics to automotive manufacturing. This technique allows for the mass production of components with precise shapes and dimensions, making it ideal for producing labels, gaskets, packaging, and more. This article explores the die-cutting process, its different types, commonly used materials, advantages, key applications, and innovations driving its evolution.

The Die-Cutting Process: How It Works

Die-cutting involves pressing a die—a custom-shaped blade—against a material to cut or shape it according to specific design requirements. The process can produce intricate patterns or simple shapes, and it is known for its precision, efficiency, and versatility. Here’s an outline of the typical die-cutting steps:

1. Design Creation: A design template is created based on the specifications required for the final product. This template determines the shape, dimensions, and layout of the die.

2. Die Fabrication: A custom die is crafted according to the design. Dies can be made from various materials, including steel for high-durability applications or flexible materials for simpler tasks.

3. Material Preparation: The material to be cut (paper, cardboard, foam, plastic, or metal) is fed into the die-cutting machine. Depending on the application, materials may come in sheets or continuous rolls.

4. Cutting Process: The die presses against the material with sufficient pressure to cut through it, leaving shapes or forms as designed. Depending on the machine, this can involve rotary, flatbed, or laser die-cutting techniques.

5. Finishing: Once cut, the pieces may go through finishing processes like trimming, gluing, folding, or embossing to achieve the desired functionality and appearance.

Types of Die-Cutting Techniques

Die-cutting encompasses several methods, each suited for specific applications, materials, and production volumes. The main types include:

1. Flatbed Die-Cutting: This traditional method uses a flat die pressed onto the material to create cuts. Ideal for thicker materials like cardboard and foam, flatbed die-cutting is known for its high accuracy and flexibility, making it popular in packaging and signage.

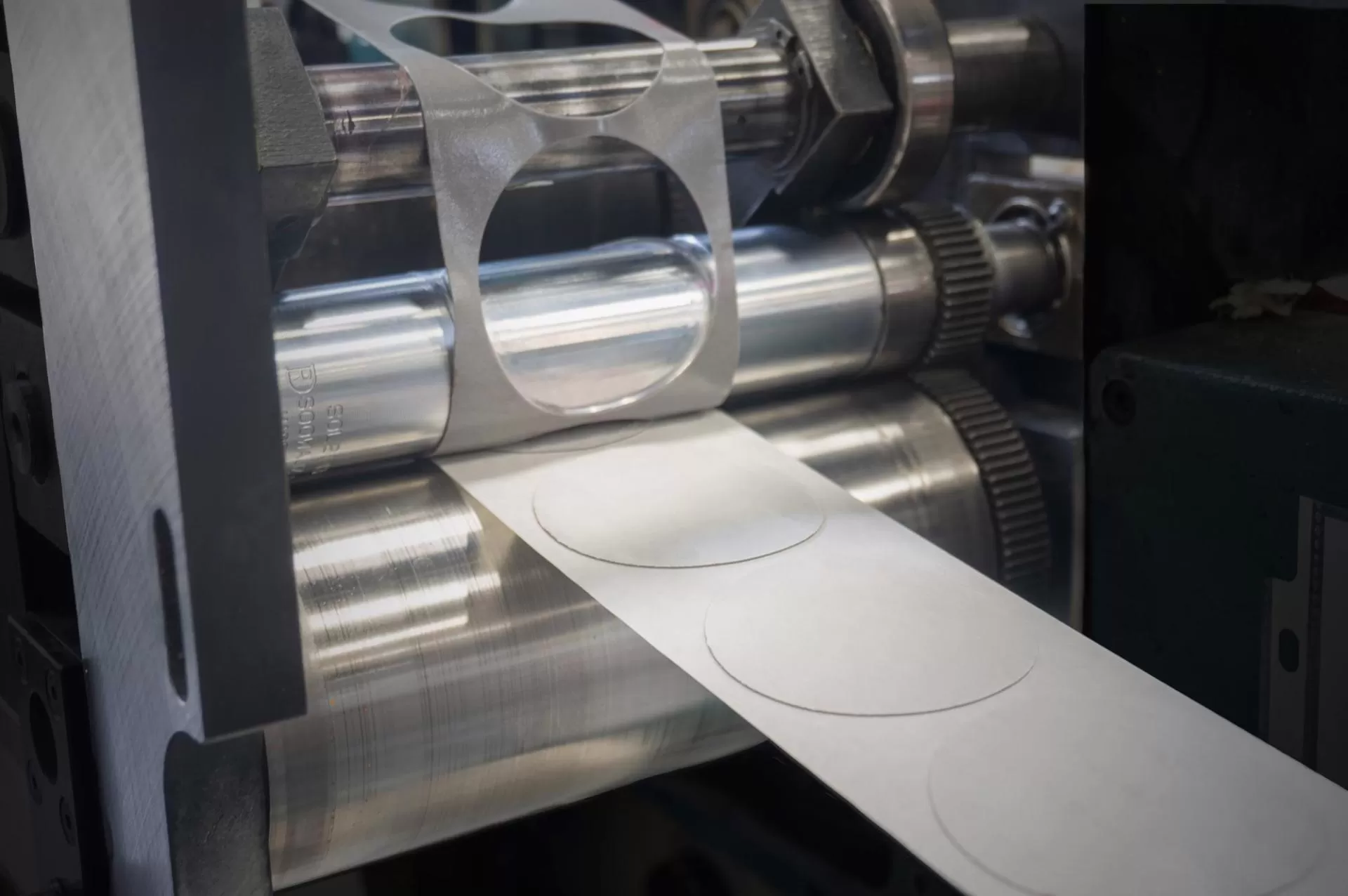

2. Rotary Die-Cutting: In this method, cylindrical dies rotate against the material, cutting as it moves through the machine. Rotary die-cutting is ideal for high-speed, high-volume production, especially with flexible materials like labels, films, and foils.

3. Laser Die-Cutting: Instead of a physical die, laser die-cutting uses focused laser beams to cut, engrave, or etch the material. It is precise, highly customizable, and does not require physical tooling, making it ideal for intricate designs, quick prototyping, and small production runs.

4. Digital Die-Cutting: This technology uses digital files to guide blades or lasers in cutting materials. Digital die-cutting is perfect for producing complex designs without tooling costs, allowing for rapid customization and prototyping.

5. Kiss Cutting: Used mainly for labels and stickers, kiss cutting applies just enough pressure to cut through the top layer of material without penetrating the backing layer. This allows for easy peeling of the cut shapes from their backing.

6. Form Die-Cutting: Form die-cutting uses specialized dies to cut materials into 3D shapes, such as boxes or packaging forms. This technique is commonly used in packaging for structural components like custom boxes and inserts.

Common Materials in Die-Cutting

Die-cutting works with a variety of materials, depending on the application’s requirements. Popular materials include:

• Paper and Cardboard: Used extensively in packaging, signage, and printed media, these materials are cost-effective and easy to cut, shape, or emboss.

• Foam: Often used for protective packaging, foam sheets can be die-cut into inserts, gaskets, and padding, offering shock absorption and cushioning.

• Plastic Films: Films like PET, PVC, and PP are commonly die-cut for labels, flexible packaging, and decals. Plastic films are durable and can be die-cut in high volumes with precision.

• Rubber and Silicone: Valued for durability and flexibility, rubber and silicone are die-cut to produce gaskets, seals, and insulation components in automotive, medical, and industrial applications.

• Metals: Thin metal sheets, such as aluminum and copper, are often die-cut for electrical components, spacers, and decorative elements.

• Textiles and Fabrics: Used in apparel, automotive interiors, and protective covers, fabrics are die-cut to exact shapes and sizes for consistent, repeatable production.

Material selection impacts durability, flexibility, and aesthetics, making it critical to choose the right material for each die-cutting application.

Advantages of Die-Cutting

Die-cutting has several advantages that make it a preferred choice for many manufacturers:

1. High Precision: Die-cutting can produce intricate and highly detailed shapes with accuracy, which is essential in applications like labels and electronics.

2. Efficiency for Mass Production: Die-cutting is well-suited to high-volume production, with rotary die-cutting offering speeds that support continuous production.

3. Cost-Effectiveness: Once a die is created, it can be reused multiple times, making it an economical solution for long production runs.

4. Versatility in Design: Die-cutting supports complex and customized shapes, allowing manufacturers to create unique products that meet specific requirements.

5. Consistency and Uniformity: Die-cutting provides uniform results across large production runs, ensuring that each item meets the same high standards.

6. Minimal Material Waste: With careful planning and layout design, die-cutting minimizes waste, supporting more sustainable manufacturing practices.

Limitations of Die-Cutting

Despite its advantages, die-cutting has some limitations that manufacturers should consider:

1. Tooling Costs: For traditional die-cutting, creating custom dies can be expensive, especially for complex shapes or small production runs. This makes digital or laser die-cutting more viable for prototyping or short runs.

2. Limited to Certain Materials: Die-cutting is best suited for thinner, flexible materials. For thicker or very hard materials, alternative cutting methods like CNC machining may be required.

3. Complex Designs Require Specialized Dies: For very intricate or 3D designs, creating the necessary dies can be challenging and costly, requiring highly skilled labor and precision tooling.

4. Wear and Tear on Dies: Over time, traditional dies may wear out and need replacement, especially when used with abrasive materials. Laser and digital die-cutting offer alternatives to avoid tooling wear.

Key Applications of Die-Cutting

Die-cutting is widely used across industries due to its versatility and efficiency. Some notable applications include:

1. Packaging: Die-cutting is essential in the packaging industry, producing boxes, inserts, display stands, and protective layers for product packaging.

2. Labels and Stickers: Die-cutting is the preferred method for creating labels, decals, and stickers, as it offers precision for shapes, logos, and custom designs.

3. Electronics: Die-cut gaskets, insulators, and spacers are used in electronic devices to provide electrical insulation, sealing, and shock absorption.

4. Automotive: In the automotive industry, die-cutting is used to create parts such as seals, gaskets, protective layers, and custom interior elements.

5. Medical and Healthcare: Die-cut adhesives, wound dressings, filters, and gaskets are essential in medical devices and packaging, where precise cuts and sterile conditions are crucial.

6. Apparel and Textiles: Die-cutting is used to cut fabrics, trims, and labels with precision, enabling consistent production of clothing, accessories, and upholstery.

Innovations and Advancements in Die-Cutting

The die-cutting industry has seen several technological advancements, improving both efficiency and versatility. Key innovations include:

1. Digital Die-Cutting: Digital die-cutting eliminates the need for physical dies, using blades or lasers guided by digital files. This technology enables quick prototyping, customization, and cost savings for small-batch production.

2. Laser Die-Cutting: Laser die-cutting allows for highly detailed cuts without physical tooling. It is especially useful for complex designs, precise cuts, and materials that are difficult to cut with traditional dies.

3. Automated Die-Cutting Machines: Modern die-cutting machines now feature automation capabilities, enabling faster setups, continuous operation, and reduced labor costs. Automated systems are popular in high-volume packaging and label production.

4. Multi-Process Machines: These machines combine multiple functions like die-cutting, embossing, and folding, allowing for more complex designs and faster production cycles.

5. Sustainable Practices: As sustainability becomes a priority, more die-cutting operations are incorporating recyclable materials and optimizing layouts to reduce waste. Some manufacturers are developing eco-friendly adhesives and laminates to support environmentally conscious die-cut products.

6. Smart Die-Cutting Systems: With IoT integration, smart die-cutting machines offer real-time monitoring, predictive maintenance, and quality control. These systems improve accuracy, efficiency, and reduce downtime.
