Thermoforming in Manufacturing: Process, Applications, and Innovations
Thermoforming in Manufacturing: Process, Applications, and Innovations
Thermoforming is a manufacturing process that involves heating a plastic sheet until it's pliable, then forming it over a mold to create specific shapes. Known for its versatility and cost-effectiveness, thermoforming is widely used across industries such as packaging, automotive, and healthcare. From custom trays and containers to large automotive panels, thermoforming allows manufacturers to create lightweight, durable products with precision. This article provides an in-depth exploration of the thermoforming process, the materials used, its various types, key advantages, common applications, and recent technological advancements.

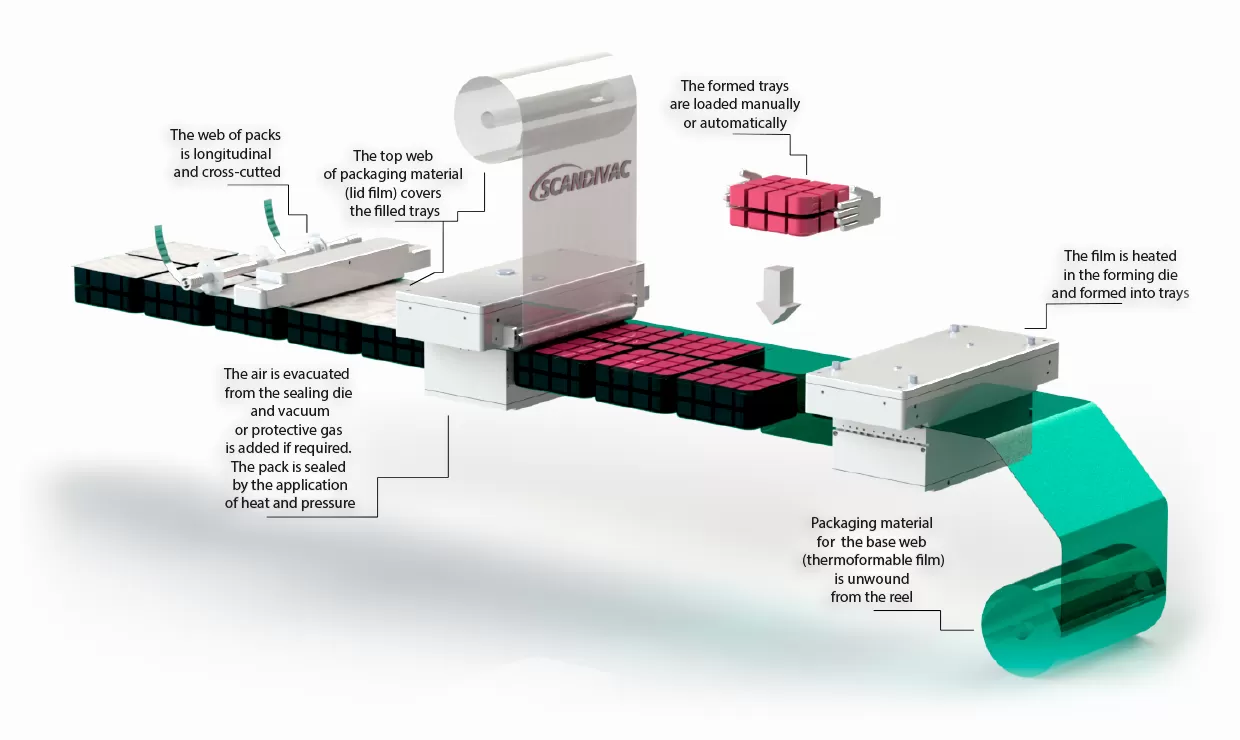

The Thermoforming Process: Step-by-Step Overview
Thermoforming is a straightforward process that uses heat, pressure, or vacuum to mold a plastic sheet over a designated form. Here is a detailed look at each step in the process:
Material Preparation: A plastic sheet is cut to the appropriate size for the mold and loaded into the thermoforming machine. Materials are chosen based on the desired properties of the final product.
Heating: The plastic sheet is heated in the forming machine to a temperature that makes it flexible without melting. Heating can be achieved through radiant or contact heat sources, and the temperature settings vary depending on the plastic type.
Forming: Once heated, the sheet is molded over a form using vacuum pressure, mechanical force, or a combination of methods. The forming technique depends on the complexity, detail, and depth required for the final product.
Cooling: After forming, the plastic cools and solidifies in its new shape. Proper cooling is essential to maintain structural integrity and prevent warping or deformation.
Trimming and Finishing: Excess material around the formed part is trimmed off, often using CNC cutters, and additional finishing steps, such as painting or drilling, are performed if required.
Types of Thermoforming
Thermoforming includes several methods, each suited to specific applications and product requirements. The main types are:
Vacuum Forming: The most common type of thermoforming, vacuum forming uses a vacuum to pull the heated plastic sheet tightly over the mold, creating simple to moderately detailed shapes. It’s widely used for packaging, signage, and trays.
Pressure Forming: Pressure forming uses both a vacuum and air pressure to press the plastic sheet onto the mold, enabling more intricate details and sharper features than vacuum forming alone. This technique is often employed for applications requiring a high level of detail, such as automotive interior panels and medical device enclosures.
Twin-Sheet Thermoforming: In this method, two plastic sheets are simultaneously heated and formed over molds, then fused together to create a hollow, air-tight structure. Twin-sheet thermoforming is commonly used for parts that need a lightweight, durable, and hollow structure, like pallets and fuel tanks.
Plug-Assisted Thermoforming: This technique involves using a mechanical plug to help stretch the heated sheet into the mold, allowing for more control over material distribution and thickness. It is used for complex parts where uniform thickness is critical, like deep trays and medical packaging.
Materials Commonly Used in Thermoforming
Thermoforming works with a variety of plastic materials, each offering unique characteristics for different applications. Key materials include:
Acrylonitrile Butadiene Styrene (ABS): Known for strength and impact resistance, ABS is ideal for automotive parts, appliance housings, and electronic enclosures.
Polyethylene Terephthalate (PET): Lightweight and clear, PET is commonly used for food packaging, including containers, trays, and beverage bottles.
Polypropylene (PP): Valued for its flexibility, chemical resistance, and low cost, PP is used in medical packaging, consumer goods, and food containers.
Polyvinyl Chloride (PVC): With good durability and chemical resistance, PVC is used in industrial applications and packaging for certain medical products.
High-Density Polyethylene (HDPE): Known for its toughness and resistance to impact and moisture, HDPE is often used for industrial parts, heavy-duty packaging, and outdoor products.
Material selection in thermoforming is critical, as it impacts product strength, clarity, flexibility, and recyclability.
Advantages of Thermoforming
Thermoforming has gained popularity for a number of advantages, particularly for low- to medium-volume production runs. Key benefits include:
Cost-Effective Tooling: Compared to injection molding, thermoforming molds are less expensive to produce, making it a more affordable option for prototypes and custom products.
Quick Turnaround: Thermoforming allows for rapid production cycles, enabling manufacturers to respond quickly to market demands or changes in design specifications.
Design Flexibility: Thermoforming can accommodate a wide range of shapes, sizes, and thicknesses, making it highly versatile for custom designs and modifications.
Material Efficiency: Excess plastic can often be recycled or reused, reducing waste and supporting sustainable production.
Lightweight yet Durable Products: Thermoformed products can be lightweight while still offering the strength and durability required for demanding applications.
Limitations of Thermoforming
While thermoforming is highly versatile, it has some limitations:
Limited Detail and Complexity: Thermoforming may not be suitable for products requiring high levels of detail or complex geometries, as it is best for simpler shapes.
Limited Material Compatibility: Not all materials are suitable for thermoforming; some may require additional treatment to handle the heat involved.
Thickness Control: Maintaining uniform thickness can be challenging, especially for deep-draw parts. This may affect the strength and functionality of certain products.
Environmental Considerations: Thermoforming primarily uses plastics, which raises concerns about environmental impact. However, advancements in biodegradable and recyclable materials are helping to address this issue.
Applications of Thermoforming
Thermoforming serves various industries, including:
Packaging: Thermoforming is commonly used to create clamshell packaging, trays, blister packs, and other protective enclosures for food, electronics, and consumer goods.
Automotive: Thermoformed parts, like interior panels, dashboards, and protective covers, are used in automotive applications for their durability and lightweight properties.
Healthcare: Thermoforming produces medical trays, device enclosures, and disposable packaging, meeting strict hygiene and safety standards.
Construction: Used for products like shower enclosures, skylights, and wall panels, thermoforming provides durable, lightweight construction solutions.
Consumer Goods: Thermoforming is widely used for creating housings for appliances, product displays, and custom trays for retail packaging.
Innovations and Advancements in Thermoforming Technology
Thermoforming has evolved considerably over recent years, incorporating technology and sustainability advancements. Some key developments include:
Advanced Temperature Control: Precision heating systems allow for better control over material distribution, resulting in improved quality and reduced material waste.
Automated Systems: Automation in thermoforming enhances speed, precision, and repeatability. Robotic trimming and automated loading/unloading increase efficiency and reduce labor costs.
Sustainable Materials: Biodegradable plastics, such as PLA (polylactic acid), and recycled materials are becoming more common in thermoforming, addressing environmental concerns associated with plastic waste.
3D Printing for Prototyping: Rapid prototyping through 3D printing helps manufacturers test designs and fit molds quickly before investing in production tooling, reducing costs and lead times.
Hybrid Thermoforming Methods: Combining thermoforming with other processes, like injection molding, enables the production of composite parts with enhanced properties, including strength and rigidity.
Multi-Layer Thermoforming: Advanced equipment now allows for multi-layer thermoforming, combining materials with different properties for improved barrier strength, insulation, or UV resistance.
Future Trends in Thermoforming
The future of thermoforming is aligned with sustainability and digitalization. Many manufacturers are investing in biodegradable materials and recycled plastics to reduce the environmental footprint of thermoformed products. Digital twin technology and IoT-enabled equipment are anticipated to become more prevalent, allowing for real-time monitoring and predictive maintenance that improves efficiency and reduces downtime.
In addition, with the rise of e-commerce and customized packaging, the demand for flexible and customizable thermoformed packaging is expected to grow. As a result, more manufacturers are developing solutions that allow for rapid adjustments to product design and dimensions without extensive retooling.
Thermoforming is an essential manufacturing process that combines flexibility, speed, and cost-effectiveness, making it ideal for a range of applications, from packaging to automotive parts. As technology advances and environmental concerns shape industry priorities, thermoforming continues to evolve, adopting sustainable practices, automation, and precision control systems to meet modern demands. With its wide-ranging capabilities and adaptability, thermoforming remains a crucial tool in today’s manufacturing landscape, empowering industries to create lightweight, durable products efficiently.
